Name: Transport Sand Gravel 3 Axle 12 Wheel Tipper Semi Trailer
Brand: Dongfeng
Price: 18000 USD

Brand Name : Dongfeng

Place of Origin : China

MOQ : 1 unit

Price : US$18000-US$21000

Delivery Time : 20 days after the advance payment

Packaging Details : nude

Trailer type : dumping tipper trailer

Axle number : 3

Loading capacity : 45 tons

Tire : 12R22.5

Number of Tire : 12

Landing Leg Support : 28T, manual operation

Outside Dimensions : 9000x2500x3500mm

Contact Now

Transport Sand Gravel 3 Axle 12 Wheel Tipper Semi Trailer

Transport Sand Gravel 3 Axle 12 Wheel Tipper Semi Trailer

Specification of truck chassis:

Type:		Dumping Tipper Trailer
Payload		45T
Specification:	Outside Dimensions (LxWxH)	9000x2500x3500mm
	King Pin	2.00’’ traction pin
	Suspension	Mechanical suspension,American design
	Steel Spring	10pcs leaf spring, 13mm thickness, 90mm width
	Landing Leg Support	28T, manual operation
	Bottom panel thickness:	4mm
	Side panel thickness	3mm
Axle	Axle No./ weight/ brand	3 axles *13T axles, FUWA brand
Wheel:	Tire specs	12R22.5
	Rim	9.00
	Number of Tire	12
Brake:	Brake system	Four double and two single brake chamber; one unit of reliable local brand air tank; two units of reliable local brand standard coppery air-connector.
Electrical:	Electrical:	One unit of 24V 7-pin ISO 1185 socket; two sets of reliable LED light
Miscellaneous:	Painting	Sand blasting before painting; one coats of primer, anti-corrosion; two coat of finish painting; color advised by client
	Marking	standard
	Side Guard	standard
	Tools box	One piece (1. 00. 50. 5m)( equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

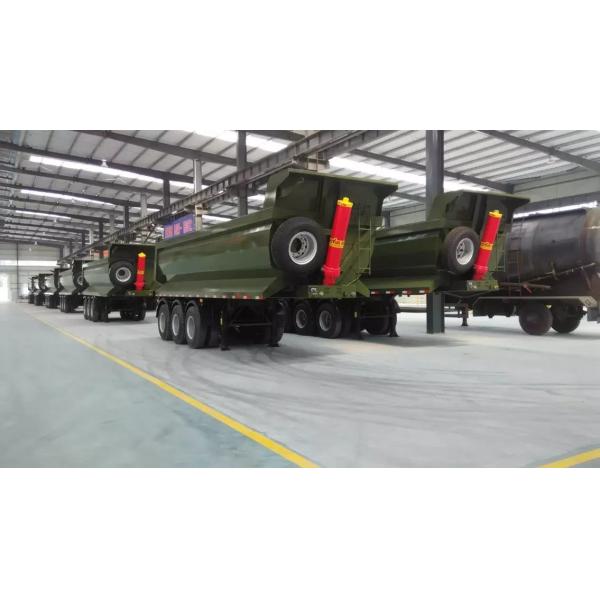

Pictures for reference:

Transport Sand Gravel 3 Axle 12 Wheel Tipper Semi Trailer
